Residential / Multi-Family Case Study

Brown University Apartments — 20 Olive Street

Full as-built documentation for this multi-building student housing complex.

3D ModelThe complex modeled brick by brick from scan data

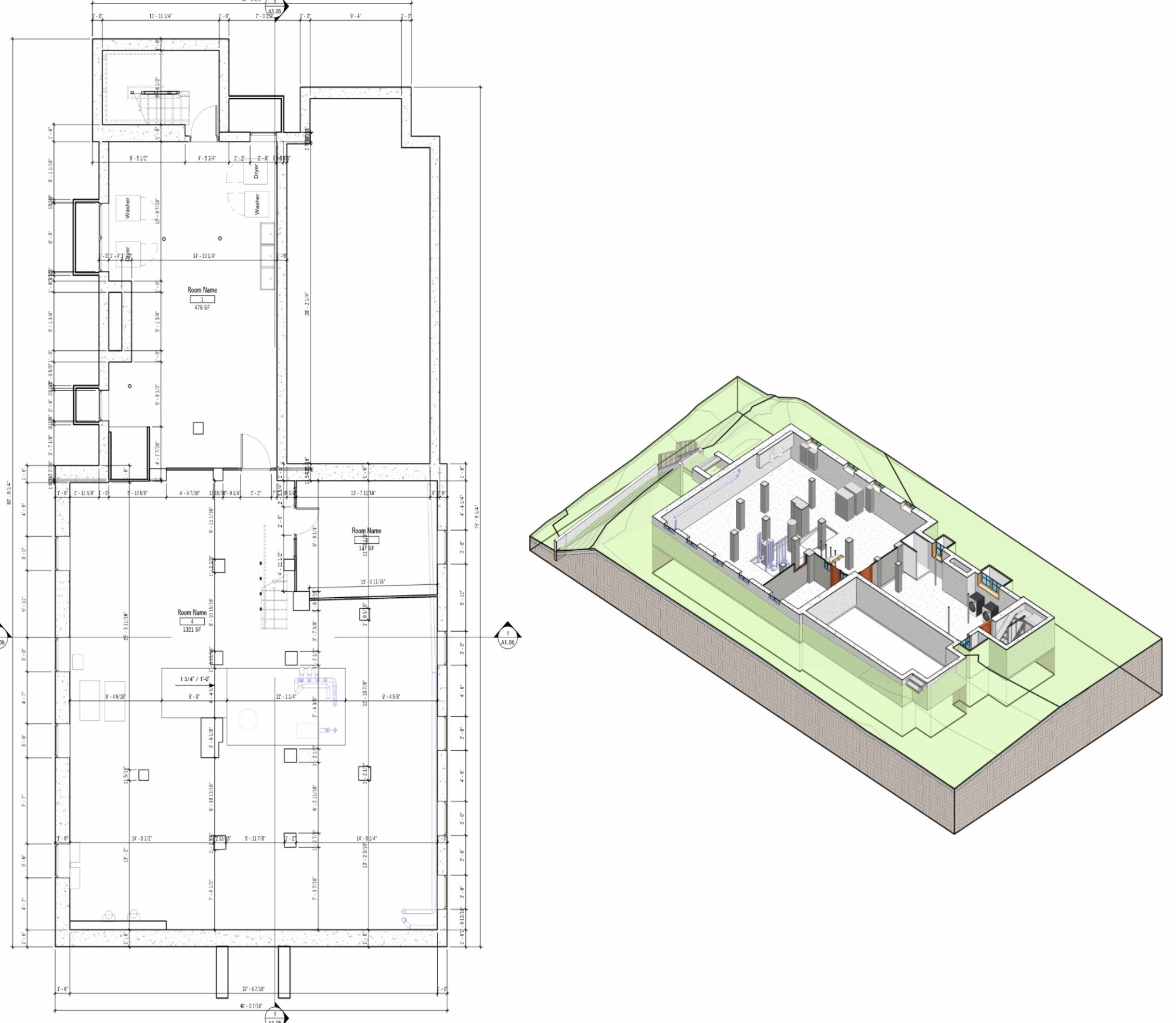

BasementBasement plan and cutaway — structure and mechanicals

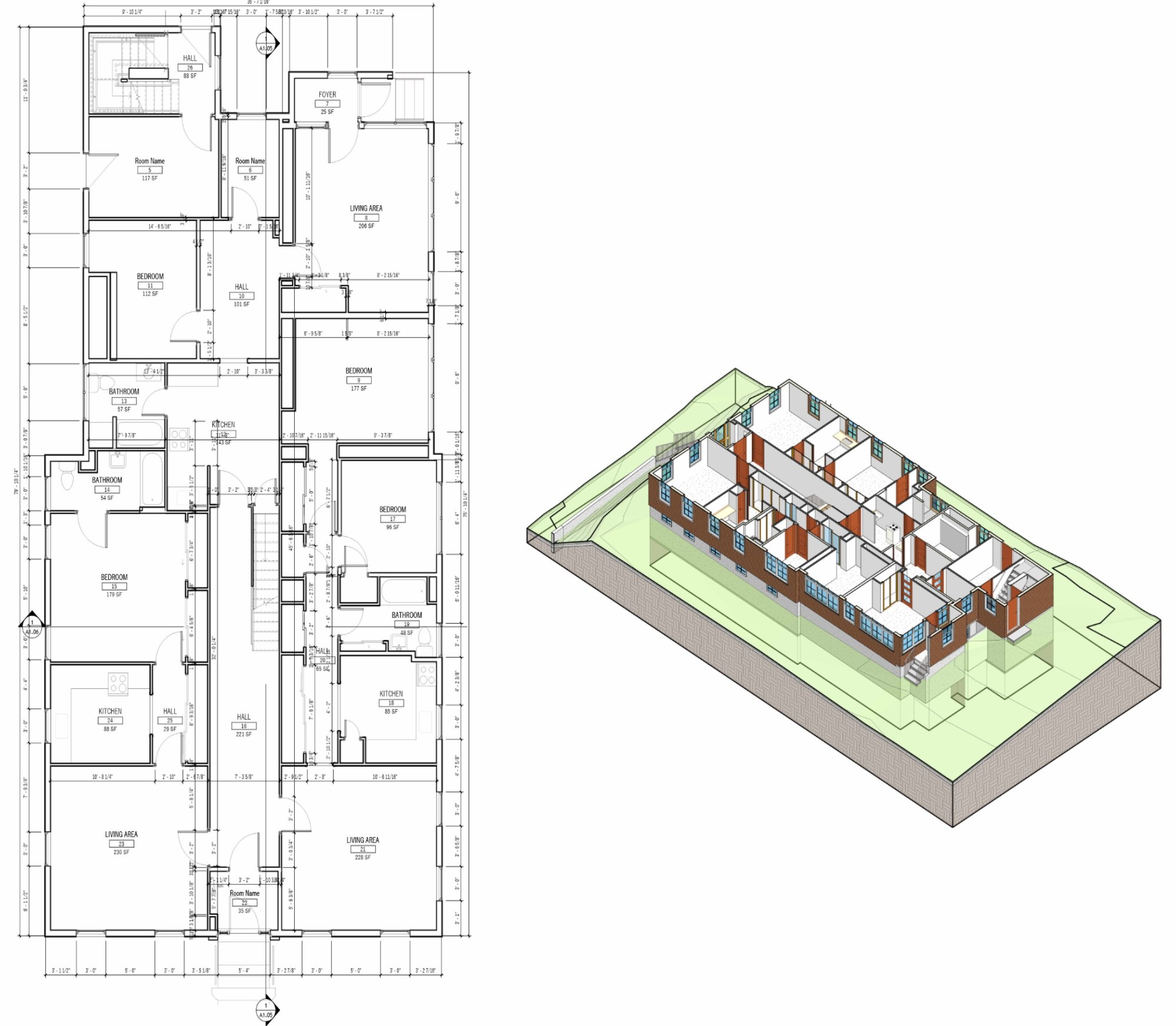

First FloorFirst floor plan and cutaway — every unit and hallway

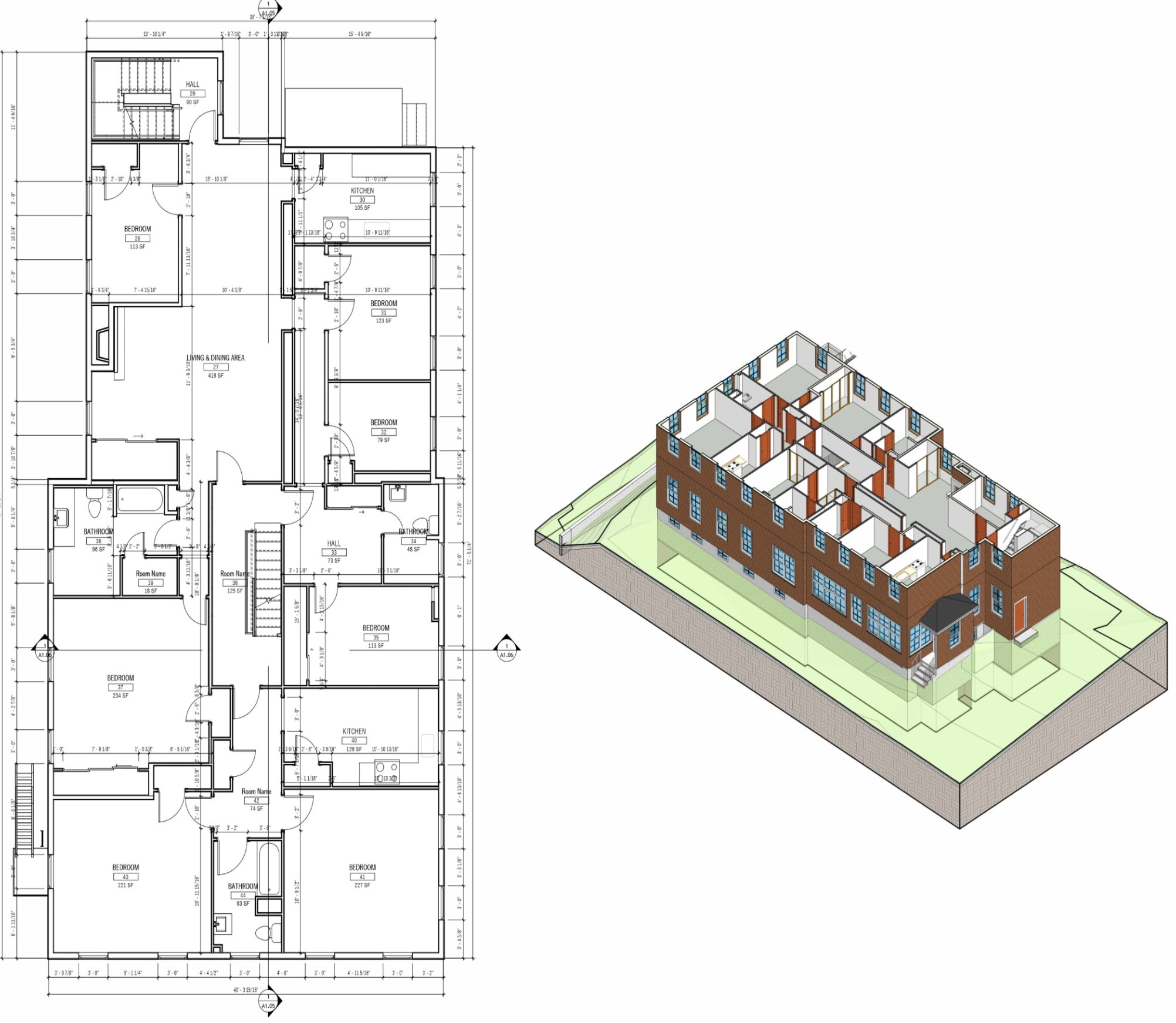

Second FloorSecond floor plan and cutaway — bedrooms, kitchens and baths

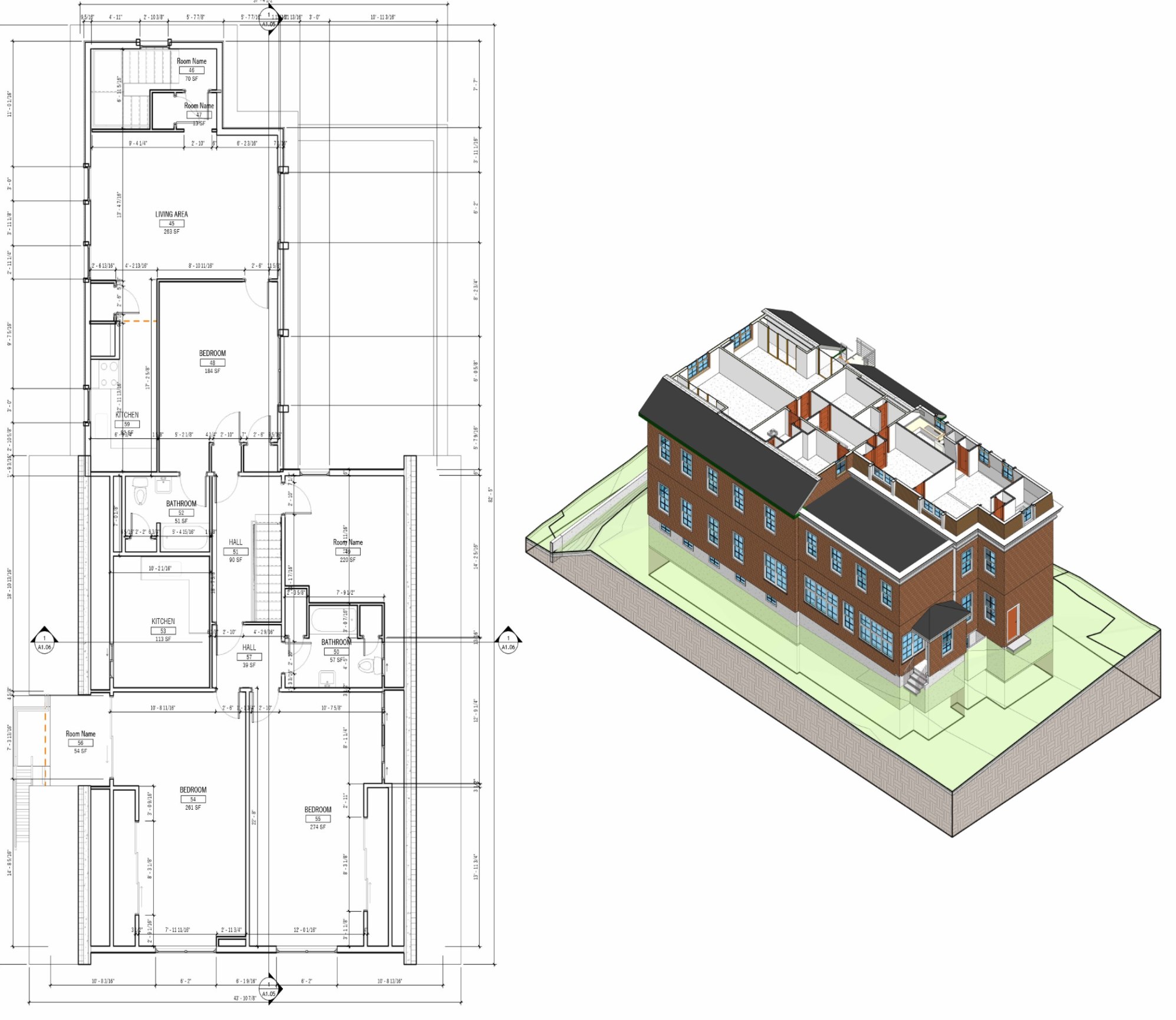

Third FloorThird floor plan and cutaway — units under the sloped roof

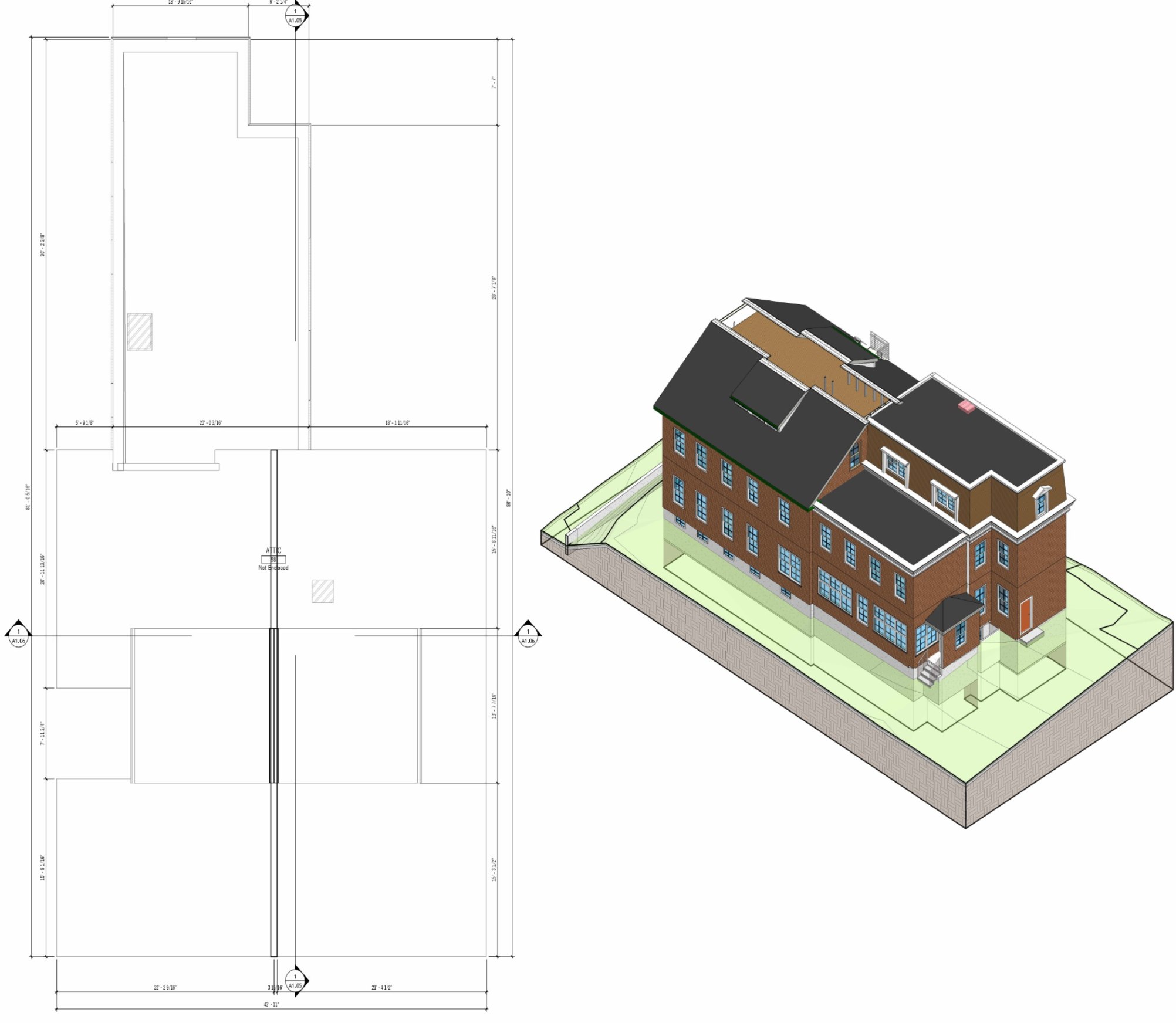

Attic & RoofAttic plan with the full model — dormers, decks and rooflines

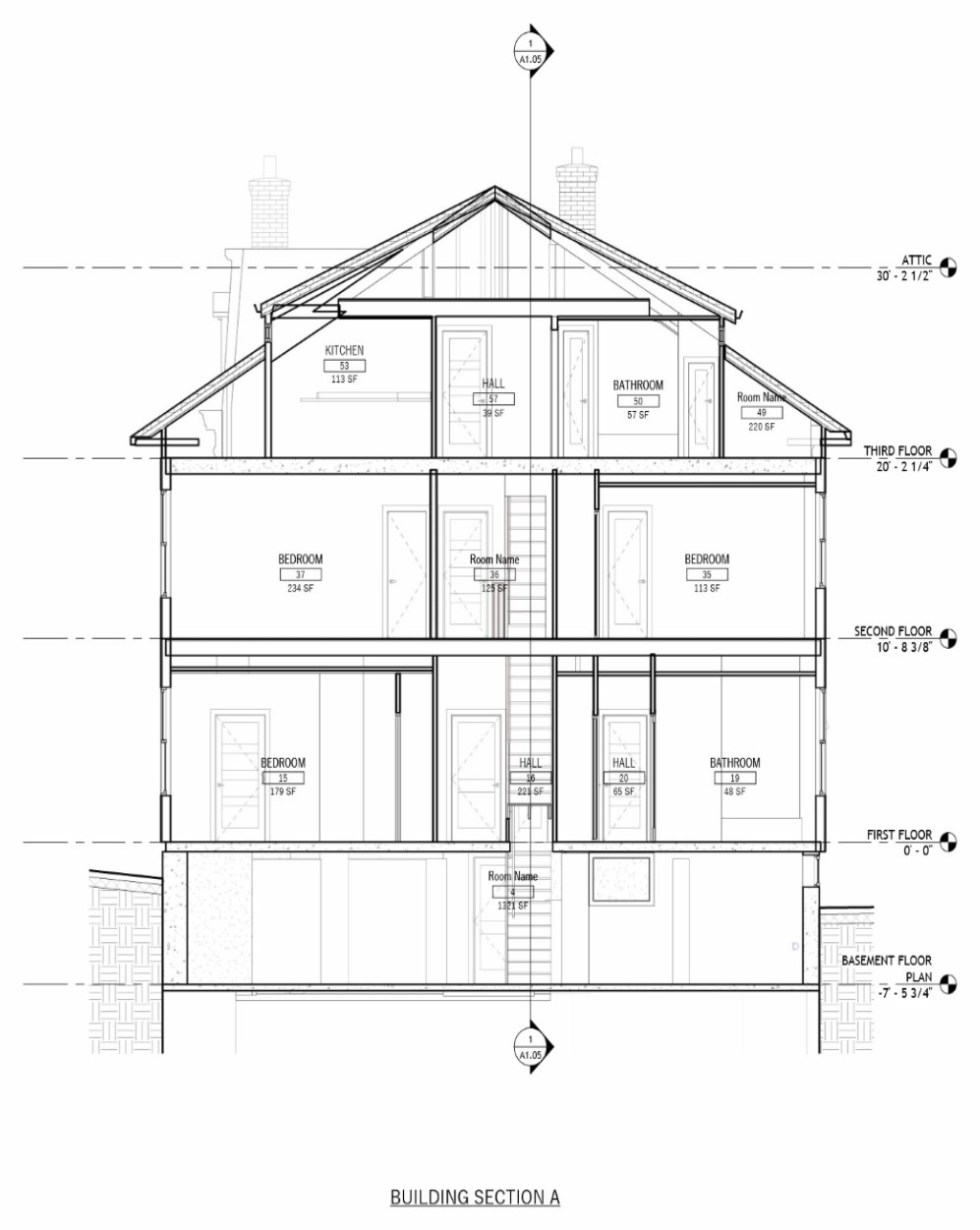

Building Section ACross section — basement to attic through the stair core

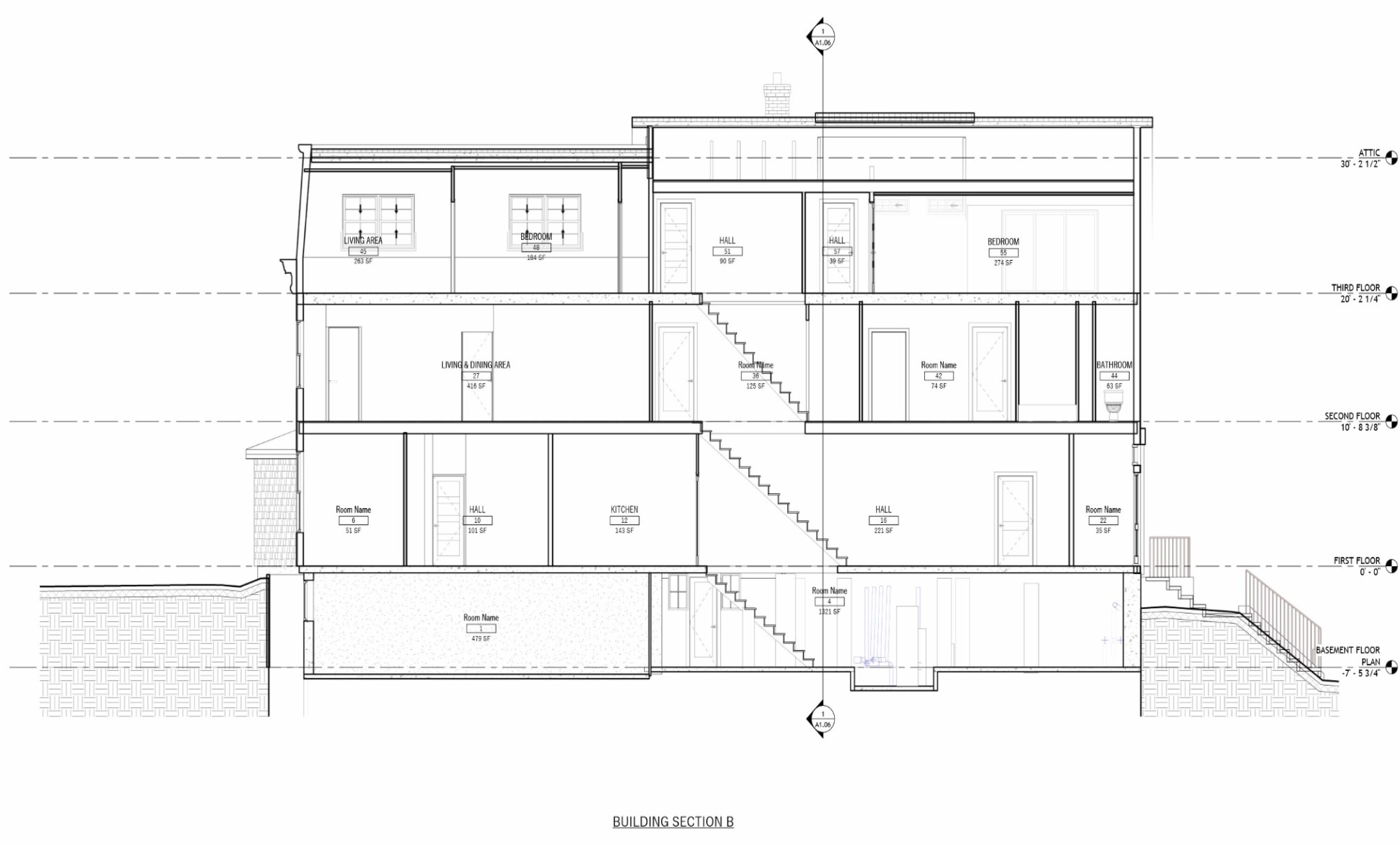

Building Section BLong section — halls, stairs and units on every level

←

→
