Full as-built floor plans, roof plan and exterior elevations for a private residence, modeled in ArchiCAD.
On-site photos of the existing conditions at time of scan.
3D massing view of the rear elevation and lower patio.
3D massing view of the garage-side elevation.
3D massing view of the front elevation.
3D massing view of the covered front entry.
3D massing view of the side elevation.

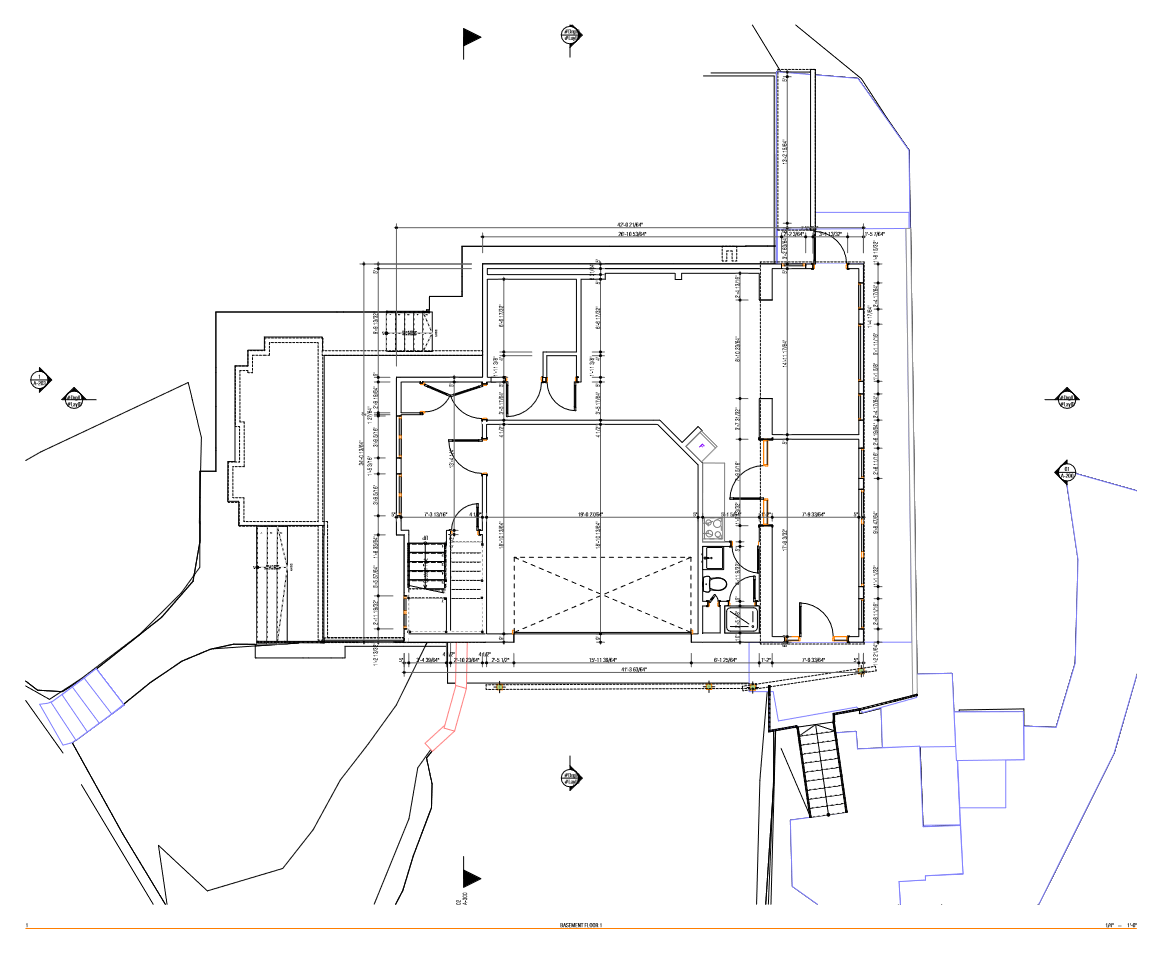

Full as-built basement level plan.

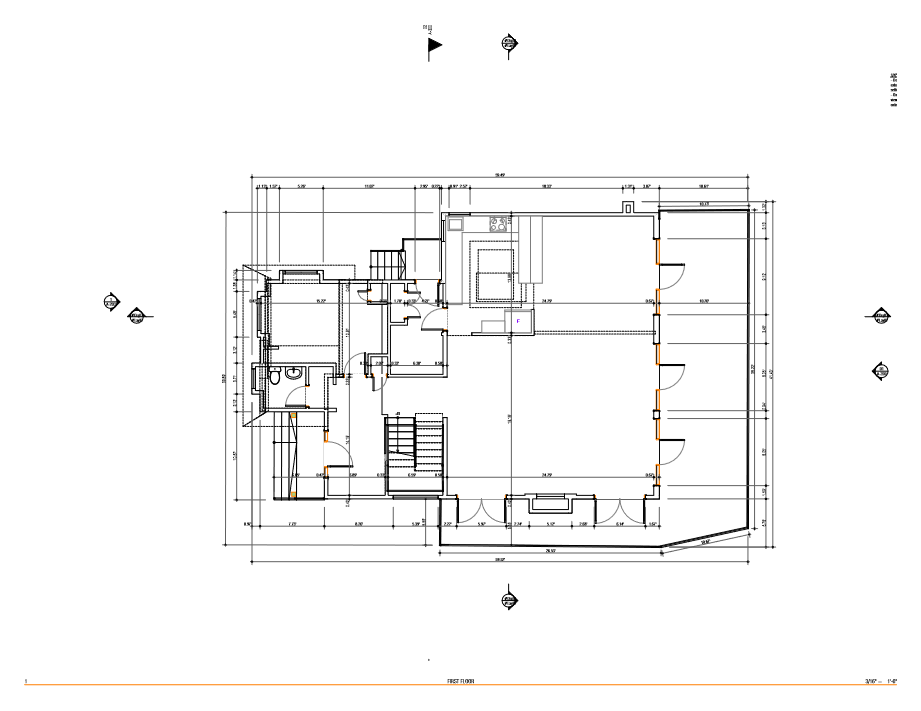

Full as-built ground floor plan.

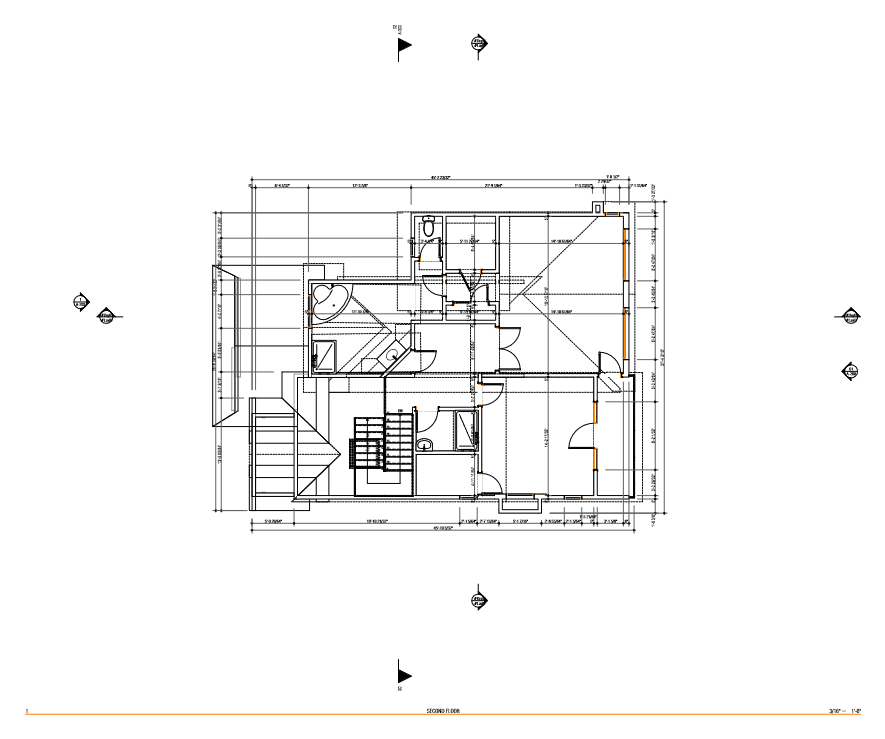

Full as-built second floor plan.

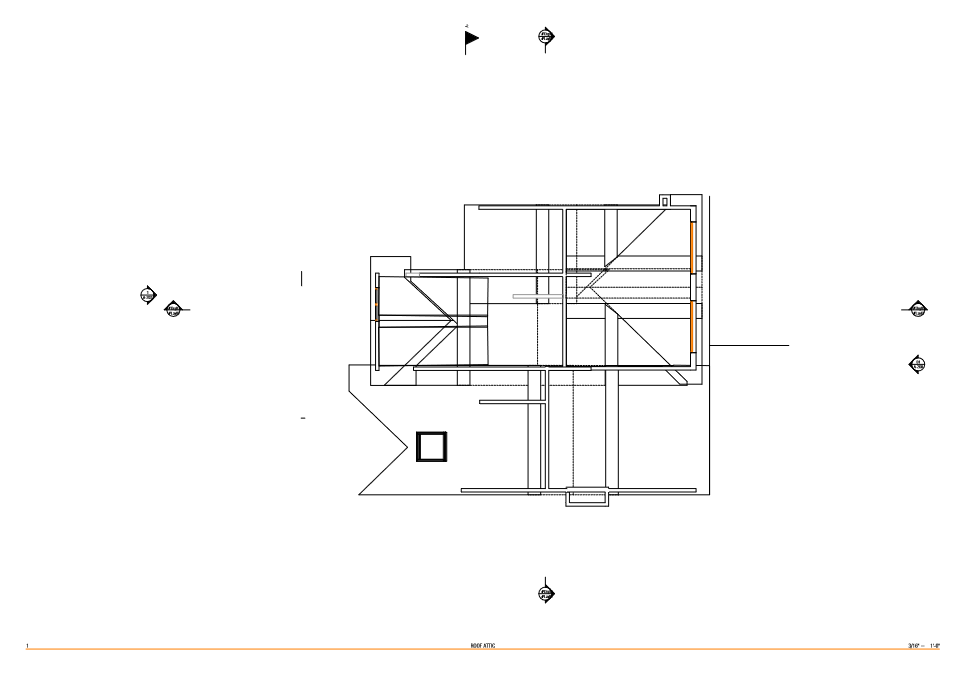

Roof & attic framing plan.

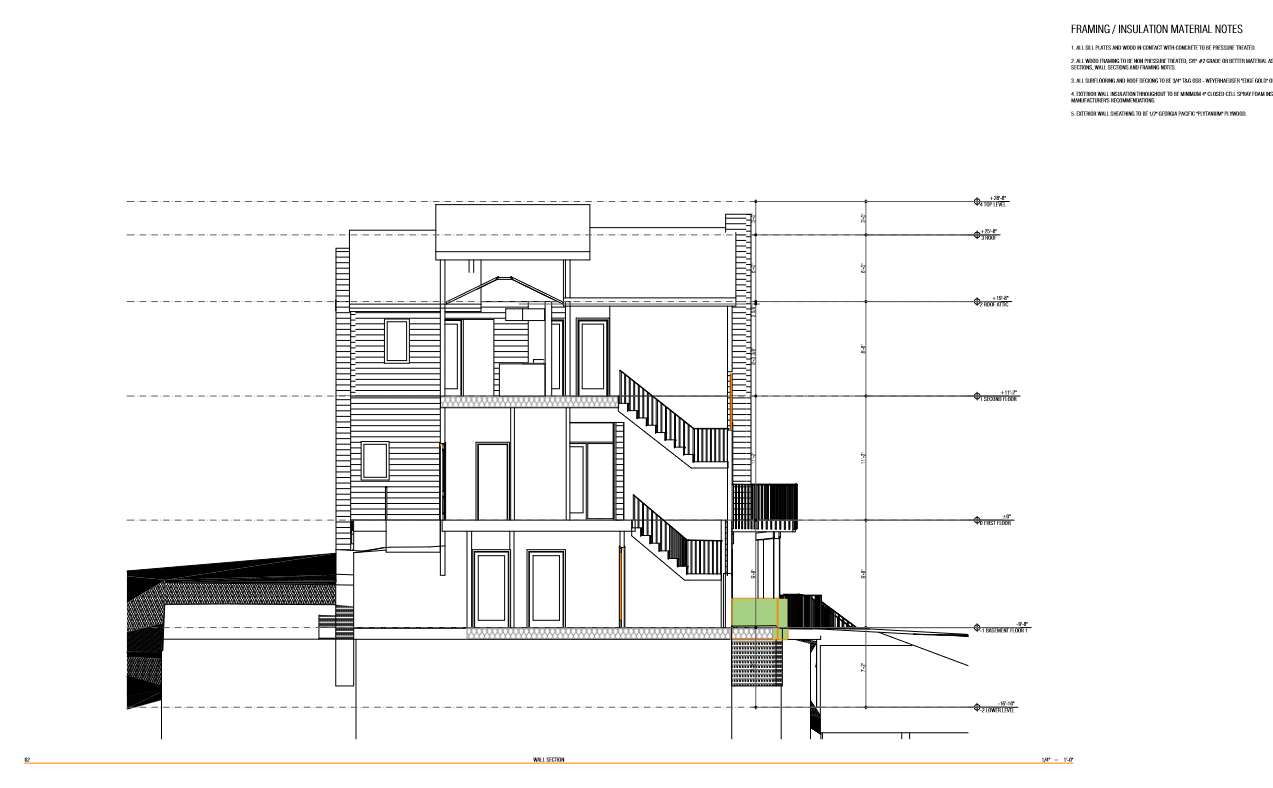

Full wall section, foundation to roof.
